Product Details:
|
| Standard: | GB / ANSI / TIA-222-G | Material: | ASTM A36 A572 Gr50 |
|---|---|---|---|
| Galvanization Standard: | ASTM A123/ ISO 1461 | CERTIFICATE: | ISO 9001:2008 |

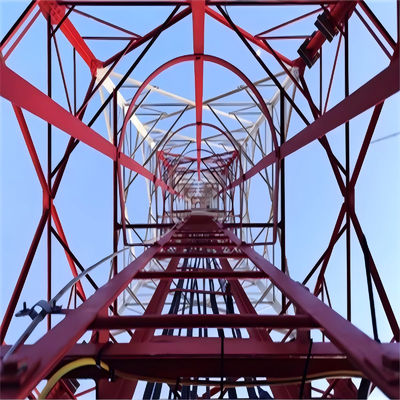

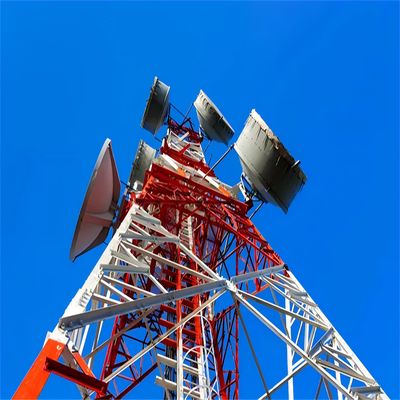

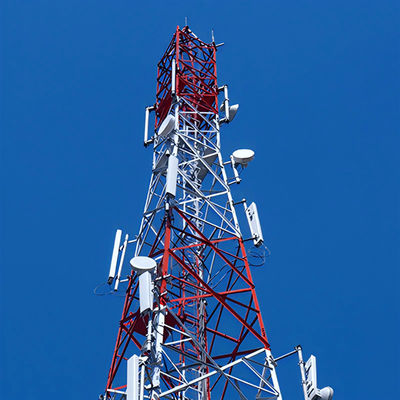

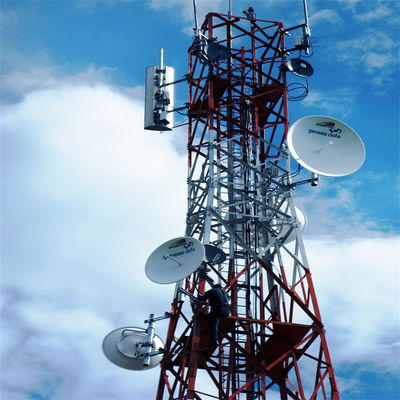

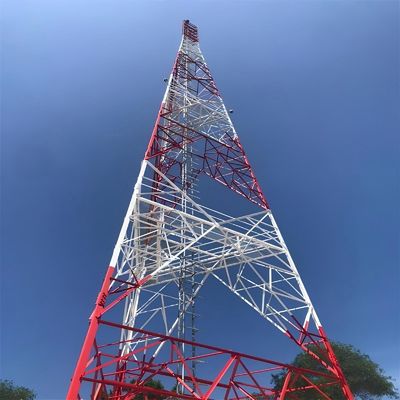

| Name: | 4 Leg Angle Steel Telecommunication Mast Tower And Accessories | Structure: | Four Support Legs |
| Wind Speed: | 20-50m/s | Nuts & Bolts: | Grade 8.8/6.8/4.8 |
| Height: | 5-200M | Warranty: | 30-50 Years |
| Platform Quantity: | 1-3,Customized | Installation Method: | Assembled Or Welded |
| Highlight: | 20m 4 leg tower,20m 4 legged angular steel tower,30m 4 leg tower |
||
JIAYAO CO.,LID
Product Description
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Pacrum.lon bag or steel
| Design | ||
| 1. Design Code | TIA/EIA-222-G/F | |
| Structure Steel | ||
| 2. Grade | Mild Steel | High Tensile Steel |
| GB/T 700:Q235B, Q235C,Q235D | GB/T1591:Q345B, Q345C,Q3455D | |
| ASTM A36 | ASTM A572 Gr50 | |
| EN10025: S235JR, S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |
| 3. Design Wind Speed | Up to 250 km/h | |
| 4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
| 5. Tension strength (Mpa) | 360~510 | 470~630 |
| 6. Yield strength (t≤16mm) (Mpa) | 235 | 355 |
| 7. Elongation (%) | 20 | 24 |
| 8. Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | 27(20°C)---Q345B(S355JR) |
| 27(0°C)---Q235C(S235J0) | 27(0°C)---Q345C(S355J0) | |
| 27(-20°C)---Q235D(S235J2) | 27(-20°C)---Q345D(S355J2) | |
| Bolts & Nuts | ||
| 9. Grade | Grade 4.8, 6.8, 8.8 | |
| 10. Standards for mechanical properties | ||
| 10.1 Bolts | ISO 898-1 | |
| 10.2 Nuts | ISO 898-2 | |
| 10.3 Washers | ISO 6507-1 | |
| 11. Standards for Dimensions | ||
| 11.1 Bolts | DIN7990, DIN931, DIN933 | |
| 11.2 Nuts | ISO4032, ISO4034 | |
| 11.3 Washers | DIN7989, DIN127B, ISO7091 | |
| Welding | ||
| 12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |
| 13. Standard | AWS D1.1 | |
| Marking | ||
| 14. Method of marking of the members | Hydraulic Press Stamping | |
| Galvanizing | ||
| 15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
| 16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
| Test | ||
| 17. Factory test |
Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test |
|
Please Click Here For More Information!!!!!!
Monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt or overlap(slip connection). It has the characteristics of easy installation and can adapt to a variety of complicated field site.
